Before machine vision systems are deployed in aerospace, advanced transportation, or other safety-critical environments, accuracy claims must survive real operating conditions.

Lighting variation, sensor drift, edge-case defects, motion blur, and model bias can all reduce inspection reliability after installation.

This guide explains practical checks that help validate readiness, reduce deployment risk, and support long-term operational assurance.

Why Accuracy Checks Differ by Deployment Scenario

Machine vision systems rarely fail because laboratory accuracy is low. They fail because deployment conditions differ from validation conditions.

A camera that performs well on static parts may underperform on vibrating platforms, reflective composites, or fast-moving rail components.

In aerospace and advanced transportation, small inspection errors can affect certification evidence, maintenance decisions, and system safety margins.

Therefore, pre-deployment accuracy checks must be scenario-specific, traceable, and linked to operational consequences.

The Core Question Before Deployment

The key question is not whether machine vision systems can detect a defect in controlled tests.

The better question is whether they can detect the right defect, at the right speed, under expected variation.

That question connects accuracy, repeatability, false alarm control, and process readiness into one deployment decision.

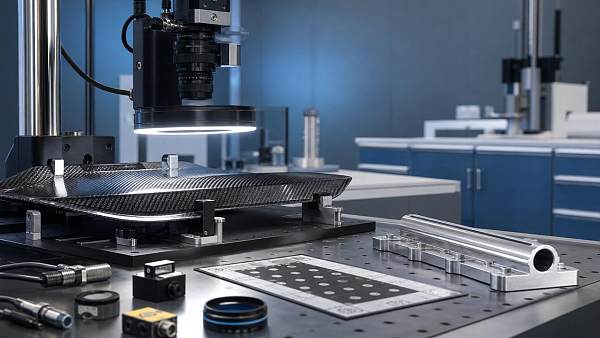

Scenario 1: Aerospace Composite Surface Inspection

Composite airframes introduce complex visual conditions. Fiber direction, resin sheen, curvature, and layered structures affect image interpretation.

Machine vision systems used here must distinguish harmless texture from cracks, delamination indicators, inclusions, or surface contamination.

Accuracy checks should include controlled samples across material batches, surface angles, and lighting geometry.

The critical judgment point is false negatives. Missing a structural defect carries greater risk than flagging extra review cases.

Recommended Checks for Composite Use

• Test accuracy under glossy, matte, curved, and shadowed surfaces.
• Compare model output against qualified nondestructive inspection references.
• Measure defect localization error, not only classification accuracy.
• Record performance by defect type, size, orientation, and contrast.

Scenario 2: High-Speed Rail and Maglev Component Monitoring

Rail and maglev environments create motion, vibration, dust, and changing illumination. These factors challenge visual consistency.

Machine vision systems may inspect wheel profiles, pantograph wear, fasteners, guideway elements, or signaling hardware.

Here, accuracy checks must include speed-dependent performance. A model validated on still images may fail during dynamic capture.

Motion blur, timing synchronization, and trigger latency should be tested as part of accuracy, not treated as separate hardware concerns.

Core Judgment Points for Moving Assets

1. Verify detection performance at expected operational speeds.
2. Test under rain, dust, tunnel transitions, and night conditions.
3. Measure missed detections across repeated passes.
4. Check whether alarms remain stable across vibration profiles.

Scenario 3: eVTOL and Autonomous Mobility Inspection

Urban air mobility platforms combine compact structures, distributed propulsion, batteries, sensors, and autonomous control elements.

Machine vision systems may support assembly verification, battery module inspection, rotor condition checks, or pre-flight visual assessment.

The main deployment issue is variability. Designs evolve quickly, and inspection references may change during development cycles.

Accuracy checks should confirm that the model remains valid when component revisions, suppliers, or surface finishes change.

Adaptation Needs in Rapidly Evolving Platforms

For eVTOL programs, machine vision systems should be evaluated for retraining speed, dataset governance, and version traceability.

A strong deployment plan defines when model updates require revalidation, regression testing, or controlled release approval.

Scenario 4: Space and Extreme-Environment Logistics

Space infrastructure and extreme logistics involve unusual visual conditions. Low light, thermal shifts, radiation effects, and contamination can distort images.

Machine vision systems used in these settings may inspect satellite assemblies, cryogenic interfaces, sealed containers, or remote handling equipment.

Accuracy checks must consider sensor stability over time. Initial calibration is not enough for long-duration operation.

Teams should test drift, temperature sensitivity, lens contamination, radiation-tolerant imaging behavior, and recovery after power cycling.

Long-Duration Reliability Checks

• Run extended burn-in tests using representative lighting cycles.
• Validate accuracy after vibration, thermal cycling, and storage.
• Compare sensor output before and after calibration intervals.
• Document degradation thresholds that trigger maintenance action.

Different Scenarios Require Different Accuracy Priorities

Accuracy is not a single number. Precision, recall, localization, repeatability, latency, and robustness matter differently by scenario.

The following comparison helps align machine vision systems with deployment conditions and inspection consequences.

Accuracy Metrics That Should Be Checked Before Release

Deployment readiness requires more than overall accuracy. Averages can hide rare but critical failure modes.

Machine vision systems should be evaluated using metrics that reflect real inspection decisions and operational risk.

Essential Metrics for Safety-Critical Use

• Recall: Measures how many real defects are detected.
• Precision: Measures how many alarms are valid.
• False negative rate: Shows missed defects with direct risk impact.
• Localization error: Confirms whether detected defects are positioned correctly.
• Latency: Determines whether inspection keeps pace with operations.
• Repeatability: Confirms stable results across repeated runs.

For machine vision systems, thresholds should be set per defect class rather than only at system level.

A rare defect with severe consequences may require a stricter threshold than a common cosmetic variation.

Dataset Checks That Prevent Deployment Surprises

Dataset quality determines whether accuracy claims are meaningful. Biased or narrow data creates false confidence.

Before deployment, machine vision systems need datasets that reflect actual operating diversity, not only ideal samples.

Dataset Readiness Checklist

• Include normal, defective, borderline, contaminated, and occluded samples.
• Balance data across suppliers, batches, seasons, and inspection stations.
• Separate training, validation, and test data by production period.
• Use independent labels for high-risk defect categories.
• Record camera settings, illumination conditions, and environmental context.

A deployment test set should be locked before final evaluation. Changing it after results appear weakens benchmarking credibility.

Environmental Stress Tests for Real-World Accuracy

Environmental testing reveals whether machine vision systems remain reliable when installation conditions change.

Lighting angle, shadows, vibration, dust, temperature, and reflective surfaces should be varied deliberately during validation.

The goal is not to create perfect conditions. The goal is to define the operational envelope clearly.

Practical Stress-Test Parameters

• Minimum and maximum illumination levels.
• Camera angle tolerance and mounting repeatability.
• Acceptable vibration and motion blur limits.
• Temperature range for sensors, lenses, and lighting.
• Surface reflectivity and color variation boundaries.

When machine vision systems exceed these boundaries, outputs should be flagged, degraded, or routed to secondary verification.

Scenario Adaptation Recommendations Before Go-Live

A strong deployment plan connects scenario requirements with acceptance criteria, monitoring methods, and update controls.

The following actions help convert testing results into practical readiness decisions.

Common Misjudgments That Undermine Accuracy

Many deployment problems come from assumptions made before installation. These assumptions are avoidable with disciplined checks.

• Assuming laboratory lighting represents production lighting.
• Using overall accuracy while ignoring defect-level performance.
• Testing only clean samples and excluding contamination cases.
• Ignoring camera aging, lens fouling, and sensor drift.
• Failing to test after software, hardware, or process changes.
• Deploying machine vision systems without clear fallback procedures.

Another frequent mistake is treating false positives only as efficiency issues.

Excessive alarms can create review fatigue, weaken trust, and reduce attention to genuinely critical findings.

From Accuracy Validation to Operational Assurance

Deployment is not the end of validation. Machine vision systems require ongoing monitoring after release.

Operational assurance should include live performance sampling, drift detection, audit trails, and controlled model governance.

In regulated or safety-critical contexts, every model update should connect to documented evidence and acceptance criteria.

This approach aligns visual inspection capability with certification expectations, engineering accountability, and lifecycle reliability.

Action Plan for Deployment Readiness

Begin by defining the inspection scenario, defect taxonomy, operating envelope, and consequence of each error type.

Then test machine vision systems against locked datasets, environmental stress conditions, and realistic throughput requirements.

Finally, document thresholds, fallback actions, recalibration rules, and post-deployment monitoring responsibilities.

When these steps are completed, machine vision systems can move from promising demonstrations to dependable operational assets.

For high-stakes aerospace and advanced transportation environments, this discipline is essential to technical confidence and operational integrity.
