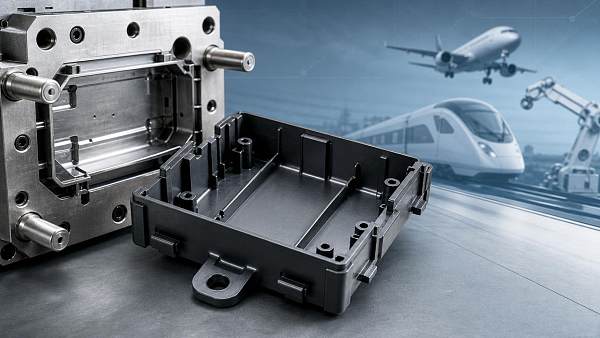

Plastic Injection Molding Tolerances: What Affects Part Quality Most?

In demanding mobility systems, tolerance is never a side issue. In plastic injection molding, small dimensional shifts can affect sealing, alignment, vibration control, electrical routing, and long-term service behavior.

That matters even more where aerospace, rail, space, and next-generation transport programs depend on repeatable parts across qualified production runs. The key question is rarely the tightest number on a drawing.

The real issue is which variables most influence part quality, and whether the tolerance strategy matches the application, material, and validation standard. In that sense, plastic injection molding tolerances are a design and process decision at once.

Why tolerance control matters beyond the drawing

A nominal dimension says what a part should be. A tolerance says how much variation remains acceptable in production, assembly, and use. That difference is where quality risk usually appears.

In plastic injection molding, the same tool can produce different results when resin behavior, thermal history, gate balance, cooling efficiency, or part geometry shifts. A capable mold alone does not guarantee stable output.

For high-consequence programs, a dimensional issue is rarely isolated. A warped housing can stress a connector. A drifting clip feature can slow assembly. A changing wall section can alter strength and cosmetic acceptance together.

This is why evaluation increasingly focuses on process capability, consistency, and control logic rather than headline tolerance claims. G-AIT’s benchmarking perspective reinforces that point across aviation, high-speed rail, UAM, and specialized logistics systems.

The factors that affect part quality most

Several variables shape plastic injection molding tolerances, but they do not contribute equally. Some drive predictable shrinkage. Others create instability between cavities, shifts across batches, or distortion after ejection.

Material behavior sets the baseline

Resin selection often determines the practical tolerance window before tooling even starts. Amorphous and semi-crystalline plastics behave very differently during cooling and shrinkage.

Semi-crystalline materials usually show greater shrink variation and stronger sensitivity to processing changes. Filled grades may improve stiffness and dimensional stability, but they can also introduce anisotropic shrink and surface tradeoffs.

Moisture sensitivity matters as well. If drying is inconsistent, plastic injection molding parts can show dimensional drift, splay, reduced mechanical performance, or unexpected process variation.

Tool design controls repeatability

Tooling quality influences far more than cavity shape. Gate location, runner balance, venting, cooling channel design, steel stability, and ejection strategy all affect dimensional consistency.

Uneven cooling is one of the most common causes of warpage. If one area freezes earlier, internal stress distribution changes. That may pass initial inspection but fail during assembly or thermal cycling.

Multi-cavity tools add another layer. Matching cavity performance is essential when parts serve as mating components, especially in interior systems, brackets, clips, covers, and sensor housings.

Process discipline determines stability

Even a well-designed tool can drift under weak process control. Melt temperature, mold temperature, injection speed, pack pressure, hold time, and cooling time influence final dimensions.

Short-term parts may still look acceptable while capability weakens. That is why stable plastic injection molding depends on control windows, not only first-article success.

In regulated sectors, dimensional performance also needs traceable settings, validated machine behavior, and measurement methods linked to the critical characteristics on the print.

Part design can help or undermine the process

Tight tolerances become difficult when geometry fights material flow or cooling. Thick-to-thin transitions, unsupported flat areas, deep ribs, long cantilevers, and sharp corners often increase distortion risk.

A better approach is to place critical dimensions where the process is naturally more stable. Uniform wall sections, sensible draft, balanced rib design, and realistic datum strategy improve outcomes early.

Where the stakes are highest

Tolerance priorities vary by application. In a general consumer product, appearance may dominate. In advanced transportation systems, dimensional control often supports function, certification evidence, and service reliability.

Across these sectors, the same lesson repeats. The strictest tolerance is not always the most valuable one. The most valuable tolerance is the one tied to actual function and verified under realistic conditions.

How to judge tolerance capability in practice

A strong review of plastic injection molding quality should move past brochure-level claims. What matters is whether the part, process, and measurement system support each other without hidden assumptions.

• Check whether critical dimensions are linked to functional datums, not just convenient inspection points.
• Ask how resin lot variation, drying control, and regrind policy influence dimensional stability.
• Review mold flow, cooling strategy, and cavity balance for parts with demanding flatness or position tolerances.
• Look for process capability evidence across production runs, not only sample parts from initial trials.
• Confirm that metrology reflects the real condition of use, including temperature, fixturing, and post-mold conditioning time.

This kind of review is especially important when benchmark decisions affect larger mobility platforms. G-AIT’s cross-sector lens shows that tolerance evaluation works best when design intent, standards logic, and manufacturing control are reviewed together.

Common mistakes behind poor dimensional outcomes

Many dimensional failures do not come from a single dramatic error. They come from reasonable decisions made in isolation, without considering how plastic injection molding behaves as a complete system.

One frequent mistake is assigning metal-like tolerances to plastic parts without accounting for shrinkage, creep, thermal response, or moisture effects. Another is tightening every dimension instead of identifying critical-to-function features.

There is also risk in validating parts too early. A component measured immediately after molding may not match its condition after stabilization, transport, or environmental exposure.

When qualification programs are involved, that gap can complicate compliance evidence, tool acceptance, and downstream root-cause analysis.

A practical way to move forward

The best next step is to treat plastic injection molding tolerances as a systems question. Start with functional requirements, then align material choice, geometry, tooling concept, processing window, and inspection method.

Where programs involve safety, certification, or high operating loads, compare tolerance expectations against real service environments rather than nominal room-temperature measurements alone.

A disciplined review can quickly reveal whether a tolerance target is robust, expensive but unnecessary, or too loose for the intended interface. That is usually where better quality decisions begin.

For teams benchmarking future mobility platforms, the useful question is simple: which dimensions truly protect performance, and what evidence shows the plastic injection molding process can hold them repeatedly?
