Diecasting Parts Defects: Common Causes and Practical Fixes

Why do small diecastingparts defects create outsized risk?

In high-reliability manufacturing, small surface marks rarely stay small problems. A tiny pore, cold shut, or flash line can become a leak path, fatigue origin, or assembly mismatch.

That is why diecastingparts inspection matters far beyond appearance. In aerospace, rail, satellite hardware, and advanced mobility systems, tolerances support safety cases, certification evidence, and long service life.

At G-AIT, benchmarking across FAA, EASA, UIC, and ISO-driven environments shows the same pattern. Defects are rarely isolated events. They usually reflect process instability, tooling wear, or weak control plans.

A practical question often follows: which die casting defects deserve immediate escalation, and which can be corrected through tighter process discipline? The answer starts with understanding defect behavior, not just defect names.

Which die casting defects show up most often in diecastingparts?

The most frequent issues are familiar, but their severity changes by application. A cosmetic blemish on a cover plate is different from the same flaw on a structural bracket.

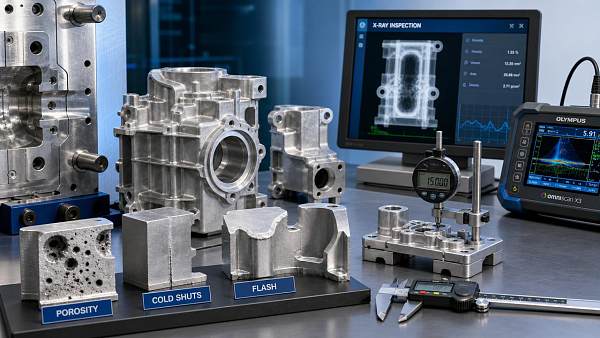

More common defect groups include porosity, cold shuts, misruns, shrinkage, flash, soldering, cracks, and dimensional distortion. Each one points to a different weakness in filling, solidification, or ejection.

A quick reference helps separate symptoms from likely causes:

In actual use, porosity creates the most debate. Not all pores are equally dangerous. What matters is size, location, clustering, and whether the part faces pressure, vibration, or post-machining.

When is a visible defect only cosmetic, and when is it a safety concern?

This is where many teams lose time. They react to every visible mark, yet overlook internal conditions that matter more. Good judgment depends on function, load path, and downstream processing.

A simple way to assess diecastingparts is to ask four questions. Will the area be machined? Does it carry structural load? Does it seal fluid or gas? Will it face cyclic stress?

If the answer is yes to any of those, tolerance for defects drops sharply. Surface blisters may hide gas expansion. Subsurface porosity can open during machining. Minor cracking can propagate under vibration.

This is especially relevant in eVTOL frames, rail braking housings, avionics enclosures, and satellite support components. Reliability expectations are higher because failure affects certification, maintenance intervals, and operational trust.

• Treat defects near bosses, ribs, and thin-to-thick transitions as higher risk.
• Escalate any flaw that appears after machining, heat exposure, or pressure testing.
• Review recurring defects by cavity, shift, alloy lot, and tool maintenance status.
• Link visual criteria to function, rather than using appearance-only acceptance.

That last point is often the difference between over-scrapping and under-controlling. Functional risk should drive disposition decisions for diecastingparts, not habit alone.

What usually causes recurring defects even after adjustments?

Repeated defects usually signal that the fix targeted the symptom, not the source. Lowering scrap for one shift is not the same as stabilizing the process over weeks.

Three causes appear again and again. First, process windows are too wide. Second, tooling condition is not tracked closely enough. Third, inspection data does not feed back fast enough.

For example, gas porosity often gets blamed on melt quality alone. In practice, spray volume drift, blocked vents, plunger wear, and inconsistent cycle time may be equally responsible.

Cold shuts tell a similar story. Teams may raise temperature, but if gate balance is poor or the shot sleeve profile remains unstable, the defect simply returns under higher output demand.

A more reliable correction path for diecastingparts usually includes:

• Locking critical parameters with narrower control limits.
• Separating cavity-specific data instead of averaging all outputs.
• Checking die temperature balance, not only global temperature.
• Verifying vent cleanliness and overflow performance every maintenance cycle.
• Comparing X-ray, sectioning, and pressure test results for the same feature.

This approach aligns with the kind of technical benchmarking used in G-AIT environments. Process capability matters, but traceability and repeatability matter just as much.

How should diecastingparts be checked before defects become certification or field issues?

The best inspections are staged, not delayed until final release. Catching defects early protects machining capacity, reduces rework loops, and keeps nonconformance reports from expanding late in the schedule.

A practical control plan often combines visual checks, dimensional verification, destructive validation, and periodic internal inspection. The right mix depends on part criticality and failure mode.

If diecastingparts will be welded, sealed, coated, or machined deeply, hidden defects deserve earlier screening. Waiting until final inspection is expensive because the defect has already absorbed more value.

The table below helps match inspection effort to defect risk:

For critical diecastingparts, inspection should also connect to change control. A new alloy batch, modified lubricant, repaired die insert, or altered cycle time can all shift defect behavior.

What fixes are practical without slowing production too much?

The most useful fixes are not always large engineering changes. Often, the fastest gains come from tightening execution around known variables and escalating only what truly needs redesign.

In many plants, three actions deliver immediate value. Standardize spray practice, verify real die thermal balance, and track defects by exact location rather than by general category.

If porosity dominates, focus on venting, overflow efficiency, and shot consistency before changing everything else. If flash dominates, inspect parting surfaces, locking force, and insert wear first.

Where dimensional instability drives rejection, cooling symmetry and ejection timing are often overlooked. Distortion is not just a metrology issue. It is usually a process balance issue.

When diecastingparts support future-mobility systems, it also helps to rank fixes by consequence. A low-cost cosmetic correction should never displace work on a defect that threatens sealing, fatigue life, or certification evidence.

• Use defect mapping sheets tied to cavity and feature location.
• Set trigger limits for recurring defects, not just total scrap rate.
• Revalidate after tool repair, process shift, or alloy source change.
• Document accepted deviations with functional justification.

If the same defect keeps returning, pause the habit of single-parameter changes. A structured review of tooling, flow, thermal profile, and inspection evidence usually reveals the deeper cause.

What should happen next if diecastingparts defects are affecting quality outcomes?

Start with a focused defect history. Look for repeat locations, repeat cavities, and repeat conditions. That tells you whether the problem belongs to design, process control, tooling health, or acceptance criteria.

Then compare defect type against part function. Some diecastingparts can tolerate limited surface variation. Others cannot tolerate internal discontinuities, especially when pressure retention or fatigue life is involved.

A useful next step is to build a short review standard. Include critical features, likely defect modes, inspection timing, escalation thresholds, and evidence required for disposition decisions.

That approach keeps quality, safety, and production aligned. It also reflects the discipline expected in G-AIT-style mobility programs, where technical performance must stand up to audit, compliance review, and real service conditions.

In plain terms, better diecastingparts outcomes come from earlier detection, better defect judgment, and tighter control of recurring causes. If the goal is fewer rejects and fewer surprises, that is the place to begin.
