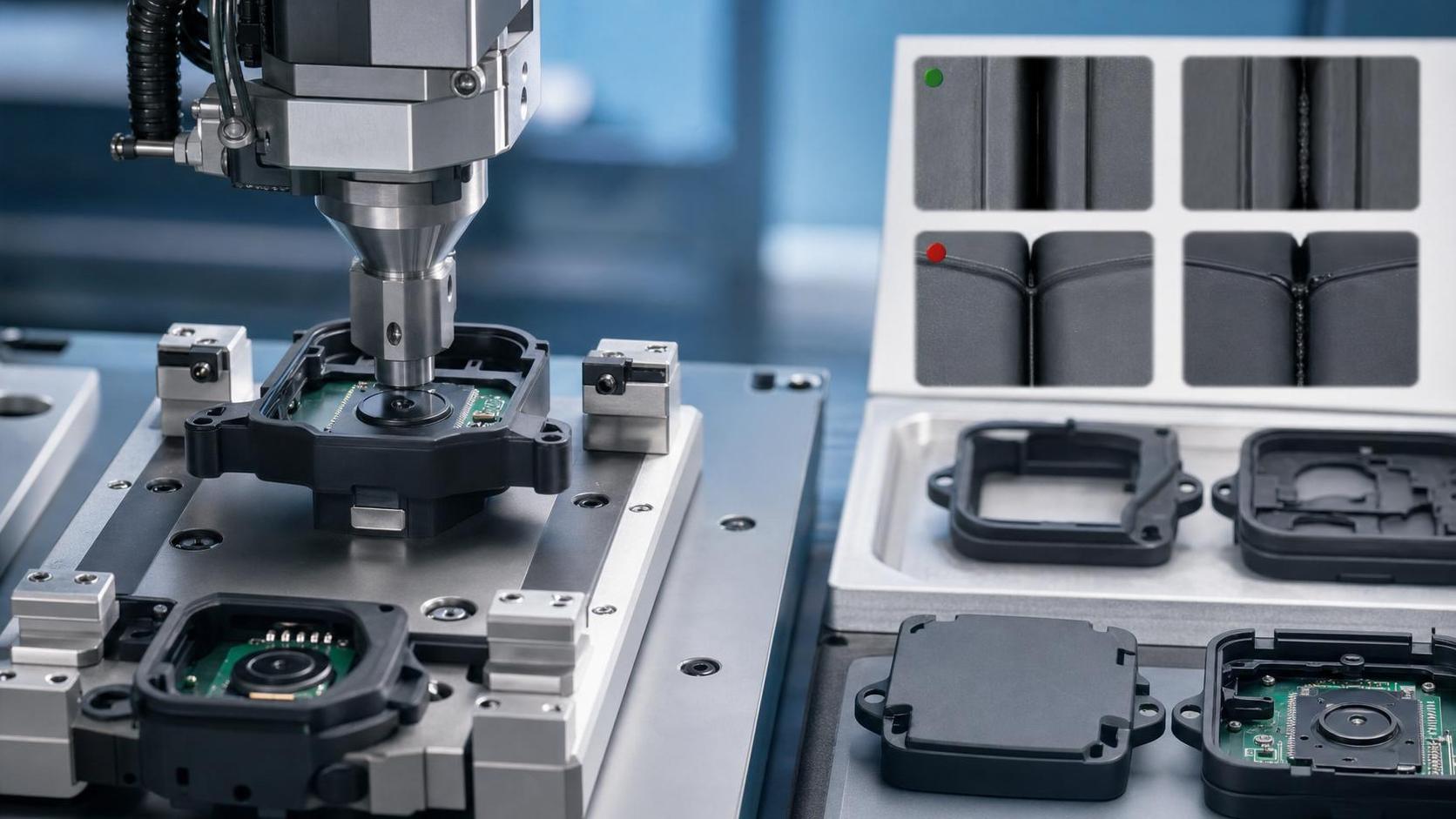

Ultrasonic Welding Defects: Causes, Fixes, and Process Checks

Why ultrasonic welding defects matter more in high-consequence production

Ultrasonic welding is valued for speed, clean joints, and repeatable assembly.

Yet in advanced mobility programs, a small weld defect can create a large downstream problem.

A weak bond in an interior aviation component differs from a crack in a rail electronics housing.

The defect may look similar, but the risk profile, validation method, and corrective action are not identical.

That is why ultrasonic welding process control matters across aerospace, urban air mobility, rail, and specialized logistics systems.

Within G-AIT benchmark thinking, joining quality is not judged only by appearance.

It is judged by functional reliability, certification pressure, traceability, and behavior under demanding service conditions.

In practical terms, ultrasonic welding defects usually surface as weak welds, excessive flash, marking, cracks, deformation, particulate generation, or unstable weld consistency.

The useful question is not simply what defect appeared.

The better question is which process condition allowed that defect to repeat.

Different operating contexts change what counts as a critical defect

In actual production, ultrasonic welding behaves differently when materials, geometry, cleanliness, and load paths change.

Thin thermoplastic covers for cabin systems need cosmetic control and dimensional stability.

Battery enclosures or sensor carriers need stronger sealing consistency and better energy transfer control.

This is common in eVTOL modules, rail control housings, and satellite support assemblies.

The more demanding the application, the less useful it is to rely on a single visual standard.

A weld with little flash may still fail under vibration.

A weld with acceptable pull strength may still damage internal parts through excessive amplitude.

So ultrasonic welding evaluation should connect defect type with service environment and inspection intent.

A quick comparison of scene-dependent priorities

The same ultrasonic welding setup rarely fits every assembly family without adjustment.

When weak bonds appear, the issue is often energy delivery rather than machine power alone

Weak ultrasonic welding joints are often blamed on insufficient power.

In reality, poor energy coupling is more common.

This happens when the horn does not contact evenly, the fixture allows movement, or the joint geometry scatters vibration.

For lightweight transport assemblies, that instability shows up as variable collapse distance and mixed strength results across a single batch.

Material mismatch can also drive weak welds.

Filled polymers, recycled blends, and moisture-sensitive resins respond differently to ultrasonic welding energy.

A parameter set proven on one resin grade may underperform after a supplier change.

That is especially important where qualified components must align with FAA, EASA, ISO, or rail standard expectations.

• Check horn condition for wear, contamination, and uneven contact marks.
• Confirm fixture support under ribs, bosses, and weld path transitions.
• Review collapse distance trends, not only pass or fail counts.
• Verify incoming material lot consistency and moisture control.

In many lines, this sequence identifies the root cause faster than increasing amplitude or extending weld time.

Flash, marking, and cracks usually point to over-welding or poor local support

Some ultrasonic welding defects are visible immediately.

Excessive flash, whitening, horn marks, and edge cracking often appear during setup changes or throughput pushes.

The easy assumption is that faster welding improves output.

The more accurate view is that every polymer and geometry has a narrow stable window.

In aviation interior trims, even minor marking may be unacceptable.

In sealed electronics housings, a small crack may be invisible at first yet become a field failure under vibration or thermal cycling.

Over-welding is not only excessive time.

It can come from high amplitude, poor anvil support, aggressive energy director geometry, or part tolerances that concentrate stress.

A useful process check is to compare cosmetic damage with actual collapse behavior.

If flash grows while collapse remains unstable, the process is likely losing control rather than simply adding strength.

Practical fixes that usually work

• Reduce amplitude before extending cycle time.
• Rework support tooling to remove unsupported spans.
• Adjust energy director shape for controlled melt initiation.
• Use hold time to stabilize the joint after vibration stops.

Inconsistent weld quality often starts outside the weld station

One of the most expensive ultrasonic welding problems is inconsistency.

A process may pass morning checks and drift by mid-shift.

This is common when production teams focus on machine settings but miss upstream variation.

Part molding variation, gate location changes, storage humidity, insert alignment, and operator loading sequence all affect weld behavior.

In high-speed rail and autonomous mobility hardware, that inconsistency creates a documentation problem as well as a quality problem.

If trace data cannot explain why one lot differs, corrective action becomes slow and expensive.

The stronger approach is to monitor a few linked indicators rather than one final result.

• Track weld energy, peak power, collapse distance, and hold pressure together.
• Compare machine trends with resin lot, molding cavity, and ambient conditions.
• Flag narrow but repeating shifts before visible defects appear.

That kind of process discipline aligns well with G-AIT style benchmarking, where performance data must support reliability claims.

Some common misjudgments make ultrasonic welding defects harder to eliminate

Several mistakes appear repeatedly across industries using ultrasonic welding.

They are easy to miss because the parts may still look acceptable at first inspection.

• Treating similar polymers as identical without checking filler content and melt response.
• Approving setup by visual appearance only, without destructive or leak validation.
• Increasing energy to solve weak bonds when the fixture is the real problem.
• Ignoring horn maintenance until inconsistent ultrasonic welding becomes chronic.
• Assuming one approved recipe can cover geometry changes across product variants.

A related oversight is separating quality checks from design feedback.

If the joint was never designed for stable energy concentration, process tuning alone has limited value.

That is why mature ultrasonic welding programs review part design, tooling, and process data together.

What a stable process check routine should include before scale-up

Before wider deployment, ultrasonic welding should be challenged under realistic operating conditions.

A short laboratory trial is rarely enough for mobility systems exposed to vibration, temperature swings, and certification controls.

A practical review routine usually includes the following checks.

This kind of routine supports both quality improvement and defensible process documentation.

Use scenario-based checks to improve ultrasonic welding decisions

The most reliable way to reduce ultrasonic welding defects is to match process checks to the real application.

A cosmetic part, a sealed housing, and a vibration-loaded assembly should not share the same acceptance logic.

In practice, better decisions come from mapping defect type, material behavior, tooling condition, and service demands together.

That is especially relevant in advanced aviation, rail, UAM, and space-related programs where one unstable weld can compromise a larger system.

The next useful step is to sort current assemblies by joint function, review recurring ultrasonic welding defects, and define a process window for each family.

Then confirm which checks belong at design review, setup approval, and routine production monitoring.

That approach turns ultrasonic welding from a fast joining method into a controlled manufacturing discipline.
